Manual Valve, Diaphragm, 3/4", CPVC, Socket; Asahi/America

Key Features

• Pipe Size 3/4"
• Connection Socket
• Body & Seal Material CPVC, EPDM
• Max. Pressure 150 PSI @ 70ºf
• Made in USA
• Part # 153007
• Serviceable diaphragm

True Union design permits installation or repairs without expanding pipeline. Rugged square body and bonnet are of solid thermoplastic for maximum corrosion resistance. Uniquely designed body and bonnet together with diaphragms of new sealing designs by the state-of-the-art computer aided analysis for superior sealing. Weir design for excellent throttling. Full vacuum rated. Bubble-tight sealing, even in applications such as slurries or suspended particles.

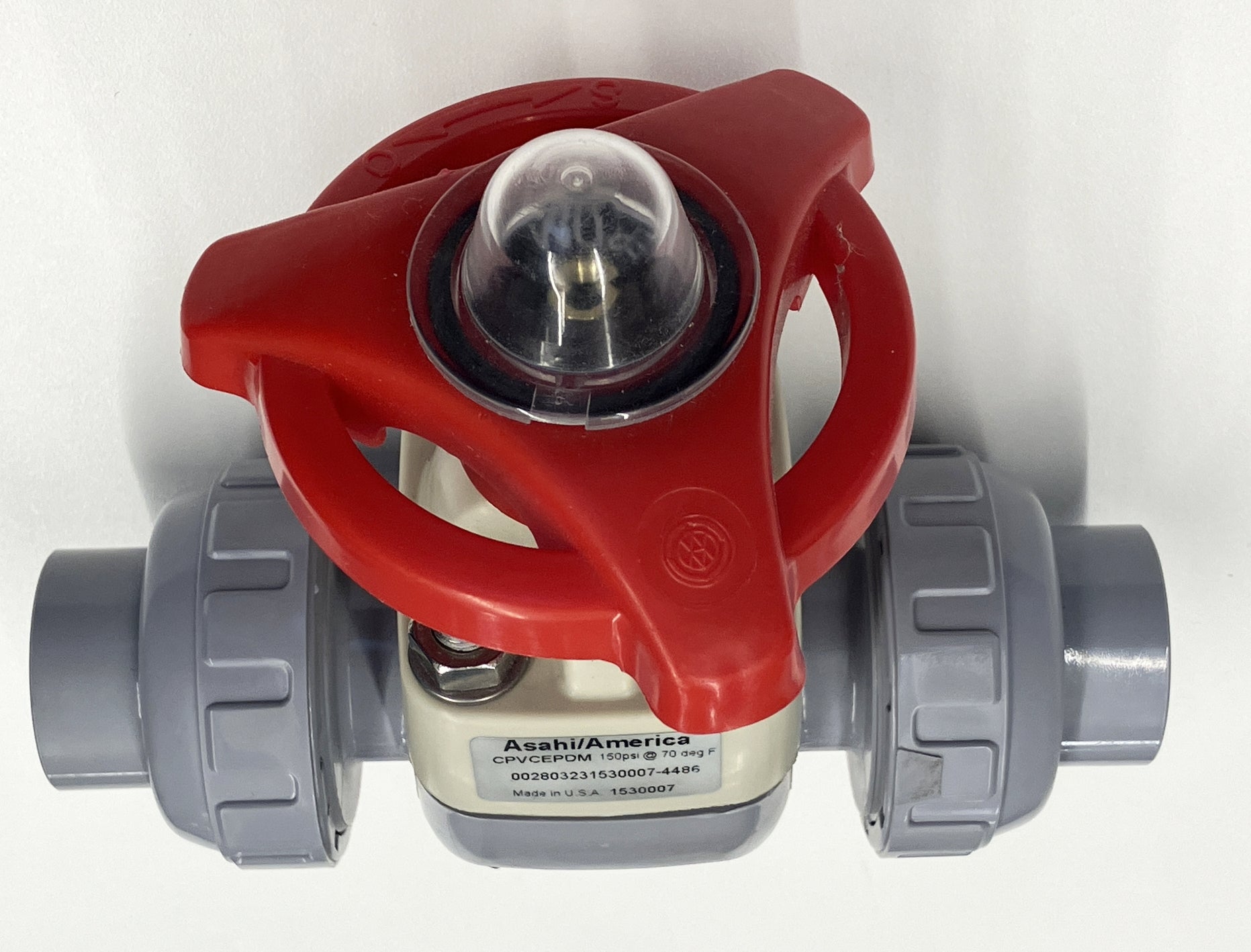

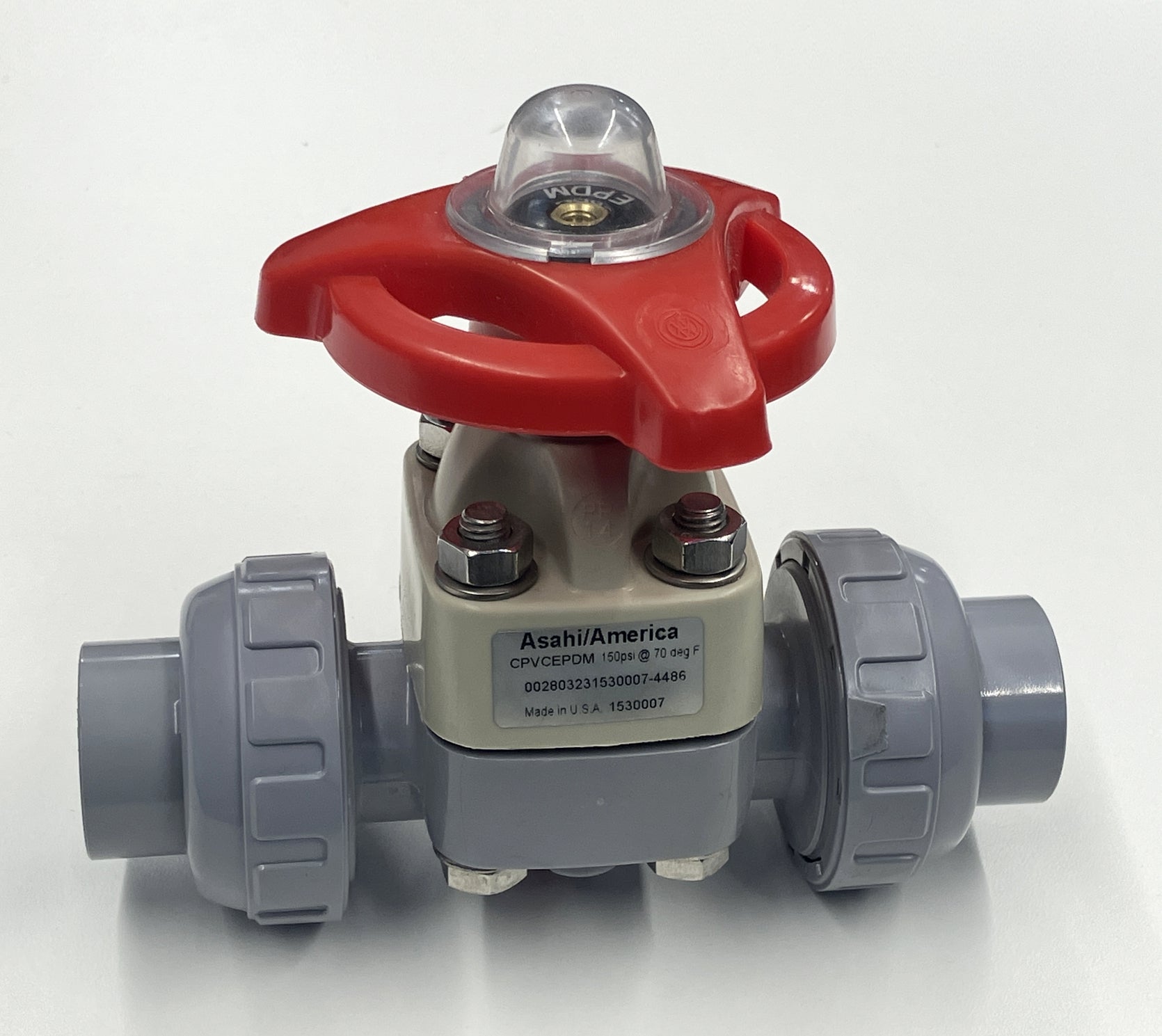

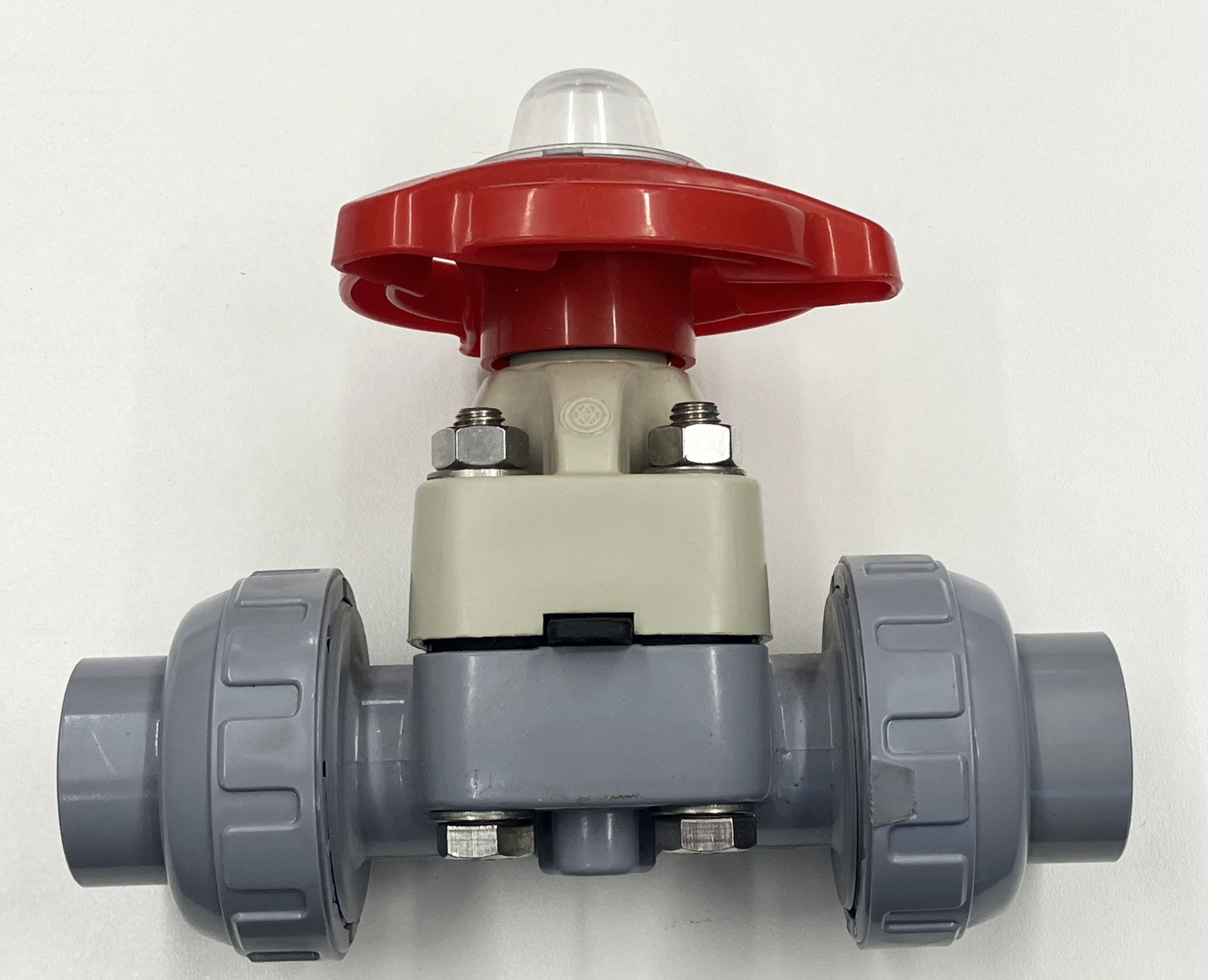

New old stock with original factory label.  Max working pressure 150 PSI.  Sockets, handle, unions, and internal components show absolutely no evidence of prior use.  Overstock from lab; no original packaging included.  Valve has surface marks from being moved around in inventory. Trademark Asahi Valve, normally made in Japan however this unit indicates Made in USA.
