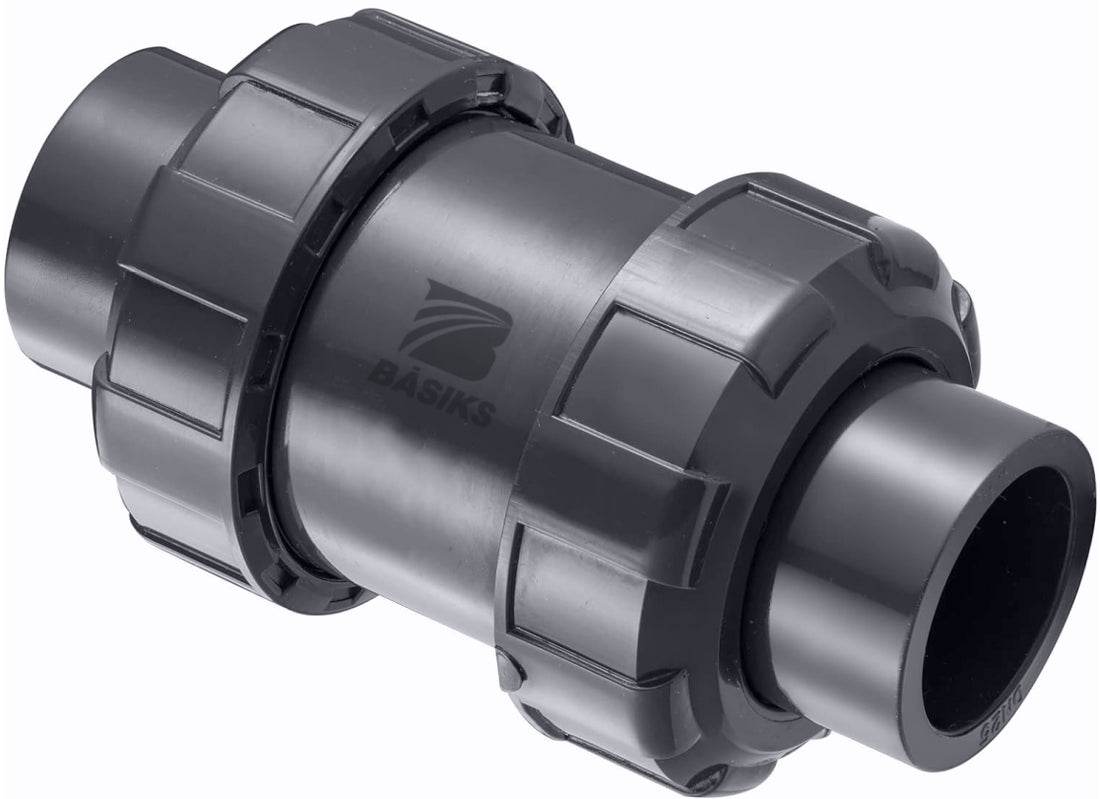

PVC ball check valves, also known as non-return valves or one-way valves, consist of a spherical ball inside a cylindrical body with inlet and outlet ports. The ball moves freely within the valve body and is held in place by a seat, which creates a seal to prevent fluid from flowing backward. When fluid flows in the correct direction, the pressure pushes the ball away from the seat, allowing the fluid to pass through. However, when the flow reverses, the ball returns to the seat, blocking the passage and preventing backflow.
Understanding Reverse Pressure
Reverse pressure, also known as back pressure or counterflow pressure, refers to the force exerted on the valve when fluid attempts to flow in the opposite direction. PVC ball check valves are designed to withstand a certain level of reverse pressure while maintaining their functionality. However, exceeding the valve's specified pressure rating can lead to leakage or failure.
It's essential to consider the system's operating conditions, such as pressure fluctuations, temperature variations, and the viscosity of the fluid, when selecting a PVC ball check valve. Choosing a valve with a higher pressure rating than the maximum expected reverse pressure helps ensure reliable performance and prevents potential issues down the line.
Mounting Direction Requirements
Proper installation is critical for the optimal performance of PVC ball check valves. These valves are designed to be installed in specific orientations to function effectively. Mounting direction refers to the position in which the valve should be installed relative to the direction of flow.
In most cases, PVC ball check valves are installed vertically with the inlet port positioned below the outlet port. This orientation allows the ball to move freely under the influence of gravity, facilitating efficient operation. Installing the valve horizontally or at an angle may impede the movement of the ball, leading to reduced performance or potential blockages.
Summary
PVC ball check valves are indispensable components in fluid control systems, providing reliable protection against backflow and ensuring the smooth operation of various applications. Understanding reverse pressure and mounting direction requirements is essential for selecting the right valve for your needs and ensuring proper installation and functionality.
When choosing a PVC ball check valve, consider factors such as the system's operating conditions, pressure ratings, and installation guidelines to ensure optimal performance and longevity. By adhering to these considerations, you can effectively mitigate the risk of backflow and maintain the integrity of your fluid control system.
