Instruction Sheet: Solvent Cementing Schedule 80 PVC Pipe, Valves and Fittings

Materials Needed:

  • PVC pipe cutter or saw
  • PVC primer
  • PVC solvent cement
  • Clean, lint-free cloths
  • Marker or pencil
  • Measuring tape
  • Deburring tool or sandpaper

Safety Precautions:

  • Work in a well-ventilated area.
  • Wear gloves and safety goggles.
  • Avoid inhaling fumes from the primer and cement.

Step-by-Step Process:

1. Measure and Cut the Pipe

  1. Measure the Length:

    • Use a measuring tape to measure the required length of the PVC pipe.
    • Mark the measurement with a marker or pencil.

  2. Cut the Pipe:

    • Use a PVC pipe cutter for a clean, straight cut. If using a saw, ensure the cut is straight and smooth.
    • Remove any burrs or rough edges with a deburring tool or sandpaper.

2. Dry Fit the Pipe and Fittings

  1. Assemble Without Cement:
    • Temporarily fit the pipe and fittings together to ensure they align properly and make any necessary adjustments.
    • Mark the pipe and fittings to ensure proper alignment during cementing.

3. Prepare the Pipe and Fittings

  1. Clean the Surfaces:

    • Use a clean, lint-free cloth to wipe the ends of the pipe and the inside of the fittings.

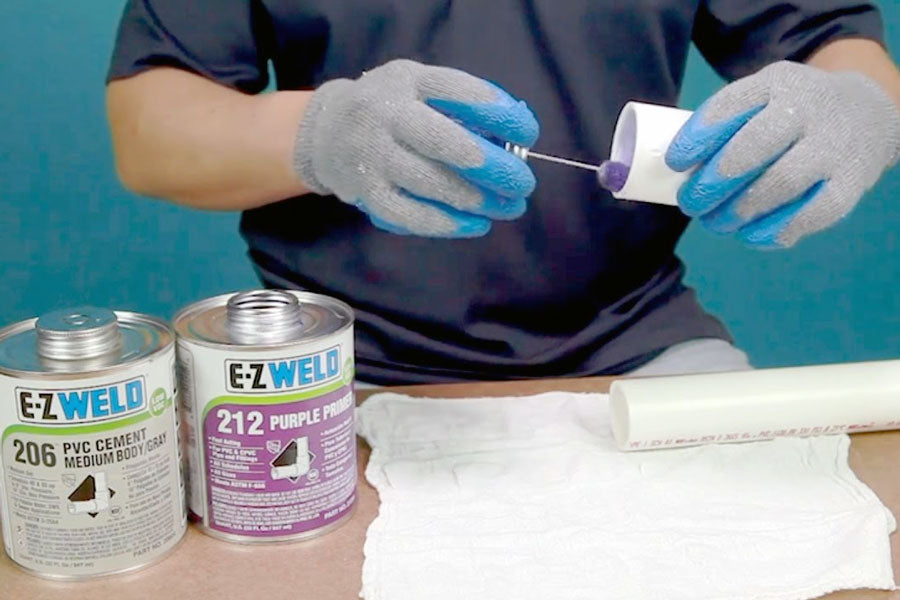

  2. Apply Primer:

    • Apply PVC primer to the outside of the pipe end and the inside of the fitting socket.
    • Ensure the primer covers the entire area that will be joined.
    • Allow the primer to dry for a few seconds (follow the manufacturer’s instructions).

4. Apply Solvent Cement

  1. Coat the Pipe:

    • Apply an even coat of PVC solvent cement to the outside of the pipe end, using the applicator provided.
    • Ensure the entire primed area is covered.

  2. Coat the Fitting:

    • Apply a thin coat of PVC solvent cement to the inside of the fitting socket.
    • Ensure the entire primed area is covered.

5. Join the Pipe and Fittings

  1. Assemble Quickly:

    • Immediately insert the pipe into the fitting socket.
    • Push the pipe fully into the fitting with a twisting motion (quarter turn) to evenly distribute the cement.

  2. Hold in Place:

    • Hold the joint together for about 30 seconds to allow the cement to set.
    • Wipe off any excess cement with a clean cloth.

6. Allow the Joint to Cure

  1. Cure Time:
    • Allow the joint to cure according to the cement manufacturer's instructions (usually 15 minutes for handling and 2 hours for full cure, but this can vary).

7. Test the Assembly

  1. Pressure Test:
    • After the recommended curing time, pressure test the assembly to ensure there are no leaks.
    • Follow any additional testing guidelines as required by your project or local codes.

Tips:

  • Always check the expiration date on the primer and cement containers.
  • Work in small sections to prevent the cement from drying before the pipe and fittings are joined.
  • Avoid using excessive cement, as it can weaken the joint.
  • For larger diameter Schedule 80 pipes, consider using a two-step solvent cementing process with a heavier bodied cement designed for Schedule 80 PVC.

By following these steps, you can ensure a secure and leak-free connection for your Schedule 80 PVC pipe and fittings.
